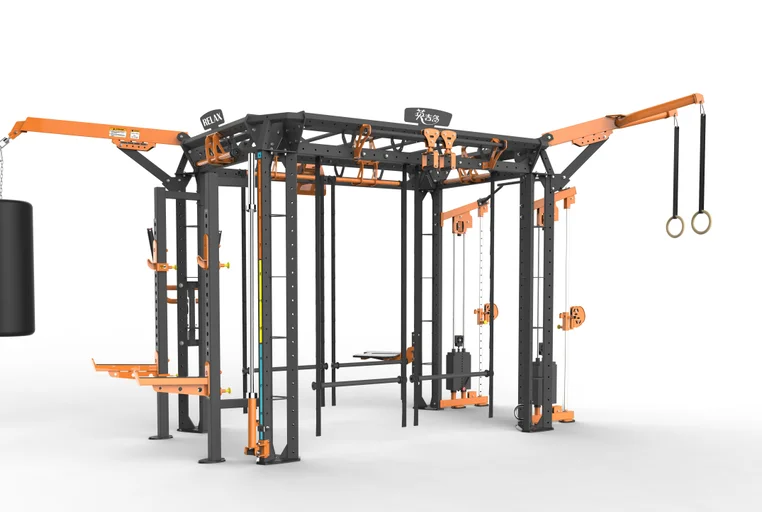

Modular 3D space training station (small rectangular corners)

Description

Product parameters:
?Pipe specifications: The main frame pipe is made of 50mm * 80mm * 3mm rectangular pipe and 6mm high-quality steel plate welded together;
?Paint baking process: immersion pre-treatment process, full surface phosphating film, electrostatic powder spraying;
?Counterweight: Using high-quality counterweight pieces (25.4mm high-quality steel) and strong magnetic self suction counterweight pins;
?Pulley: Made of high-quality aluminum pulleys;
?Steel cable: 4.8mm self-lubricating steel cable is used;
?Handle: The gloves are made of high-strength TPR material, tightly bonded to the substrate without relative rotation, and the top of the gloves is fixed with aluminum alloy parts;
?Stainless steel parts: All standard parts, bolts, etc. are made of stainless steel materials;
?Guide rod: ? 20mm steel solid guide rod;
?Functional modules: suspension ring training frame, sandbag training frame, parallel bars training frame, jumping platform, shooting board, small bird trainer, squat stand, TRX suspension system, cloud ladder training frame, etc;
?Floor area: 5200mm * 3200mm (length * width);
?Height: 2800mm-3330mm;
?Weight: 860kg (reference weight);
?Suggested activity area: 7000mm * 5000mm.
(The above parameters will vary depending on the different selection of functional modules)
